Product Summary

The LM2574MX-ADJ is a 0.5A step-down voltage regulator. It is capable of driving a 0.5A load with excellent line and load regulation. The LM2574MX-ADJ is available in fixed output voltages of 3.3V, 5V, 12V, 15V, and an adjustable output version. The applications of the LM2574MX-ADJ include: (1)Simple high-efficiency step-down (buck) regulator; (2)Efficient pre-regulator for linear regulators; (3)On-card switching regulators; (4)Positive to negative converter (Buck-Boost).

Parametrics

LM2574MX-ADJ absolute maximum ratings: (1)Maximum Supply Voltage: 45V; (2)ON /OFF Pin Input Voltage: -0.3V ≤ V ≤ +VIN; (3)Output Voltage to Ground(Steady State): -1V; (4)Minimum ESD Rating(C = 100 pF, R = 1.5 kΩ): 2kV; (5)Storage Temperature Range: -65℃ to +150℃; (6)Lead Temperature(Soldering, 10 seconds): 260℃; (7)Maximum Junction Temperature: 150℃.

Features

LM2574MX-ADJ features: (1)3.3V, 5V, 12V, 15V, and adjustable output versions; (2)Adjustable version output voltage range, 1.23V to 37V(57V for HV version) ±4% max over line and load conditions; (3)Guaranteed 0.5A output current; (4)Wide input voltage range, 40V, up to 60V for HV version; (5)Requires only 4 external components; (6)52 kHz fixed frequency internal oscillator; (7)TTL shutdown capability, low power standby mode; (8)High efficiency; (9)Uses readily available standard inductors; (10)Thermal shutdown and current limit protection.

Diagrams

LM2574MX-ADJ Connection Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

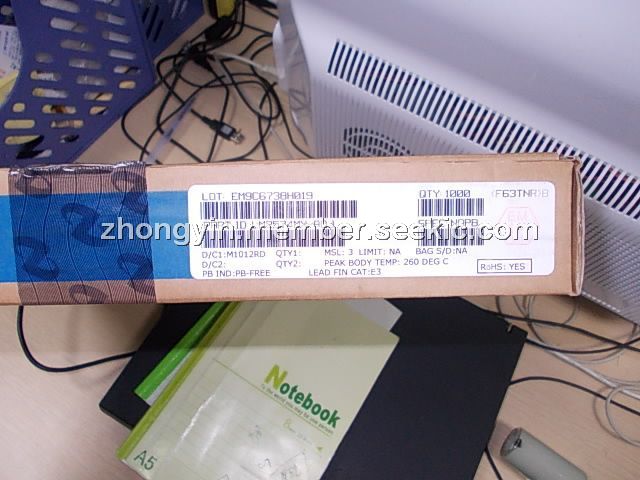

LM2574MX-ADJ
LM2574MX-ADJ

National Semiconductor (TI)

Switching Converters, Regulators & Controllers

Data Sheet

0-1000: $0.71
1000-3000: $0.66
3000-5000: $0.64
5000-10000: $0.50
LM2574MX-ADJ/NOPB
LM2574MX-ADJ/NOPB

National Semiconductor (TI)

Switching Converters, Regulators & Controllers 0.5A STEP-DOWN VLTG REG

Data Sheet

0-1: $1.24
1-25: $1.00
25-100: $0.90
100-250: $0.80
