Product Summary

The LMV822MMX bring performance and economy to low voltage / low power systems. With a 5MHz unity-gain frequency and a guaranteed 1.4 V/μs slew rate, the quiescent current is only 220 μA/amplifier (2.7 V). The LMV822MMX provide rail-to-rail (R-to-R) output swing into heavy loads (600 Ω Guarantees). The input common-mode voltage range includes ground, and the maximum input offset voltage is 3.5mV (Guaranteed). They are also capable of comfortably driving large capacitive loads. Overall, the LMV822MMX (Dual) is low voltage, low power, performance op amp, that can be designed into a wide range of applications, at an economical price.

Parametrics

LMV822MMX absolute maximum ratings: (1)Ultra Tiny, SC70-5 Package 2.0 x 2.0 x 1.0 mm; (2)Guaranteed 2.5 V, 2.7 V and 5 V Performance Maximum VOS 3.5 mV (Guaranteed); (3)VOS Temp. Drift 1 uV/℃; (4)GBW product @ 2.7 V 5 MHz; (5)ISupply @ 2.7 V 220 μA/Amplifier; (6)Minimum SR 1.4 V/us (Guaranteed); (7)CMRR 90 dB; (8)PSRR 85 dB; (9)VCM @ 5V -0.3V to 4.3V; (10)Rail-to-Rail (R-to-R) Output Swing; (11)Stable with High Capacitive Loads.

Features

LMV822MMX features: (1)Machine Model: 100V; (2)Human Body Model: 2000V; (3)Supply Voltage (V+ V-): 5.5V; (4)Infrared or Convection (20 sec): 235℃; (5)Storage Temperature Range: -65℃ to 150℃; (6)Junction Temperature: 150℃.

Diagrams

LMV822MMX Connection Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

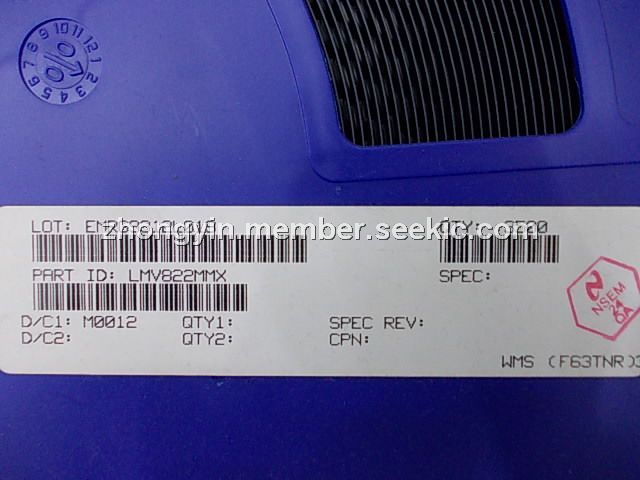

LMV822MMX
LMV822MMX

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-3500: $0.32
LMV822MMX/NOPB
LMV822MMX/NOPB

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-1: $0.64
1-10: $0.58
10-25: $0.51
25-100: $0.35
LMV822MMX_1091823
LMV822MMX_1091823

Other


Data Sheet

Negotiable
