ad780anz

ultrahigh precision bandgap reference voltage, DIP-8, 36 V, 500 mW, Ultralow Drift, High Accuracy, Low Noise

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.85~2.92 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.85~2.92

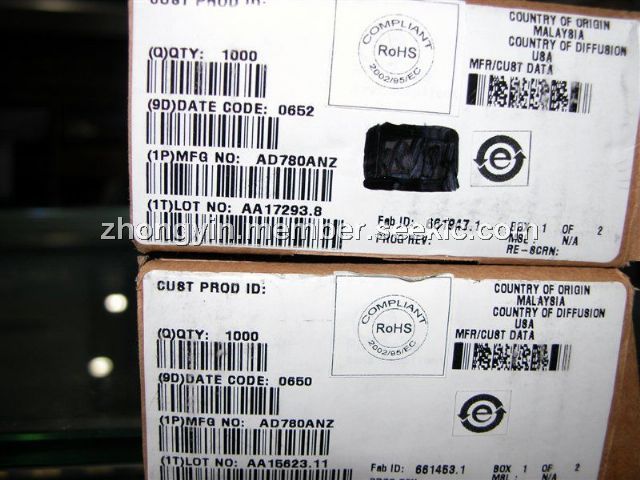

PartNumber:: ad780anz

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-08

From Other Seller

Part Number:ad780anz
US $2.85 - 2.92
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

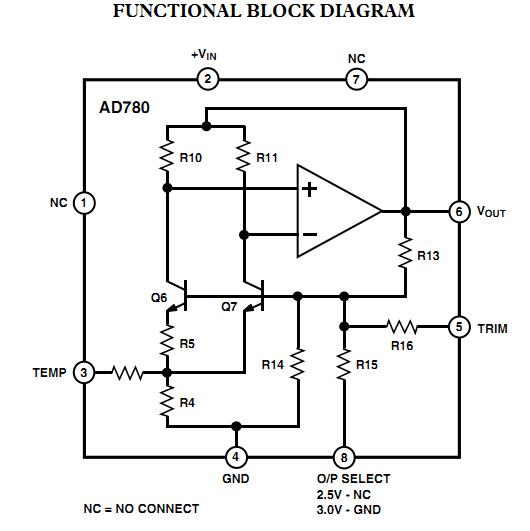

The ad780anz is an ultrahigh precision bandgap reference voltage. The ad780anz provides a 2.5 V or 3.0 V output from inputs between 4.0 V and 36 V. Low initial error and temperature drift combined with low output noise and the ability to drive any value of capacitance make the ad780anz the ideal choice for enhancing the performance of high resolution ADCs and DACs and for any general purpose precision reference application. A unique low headroom design facilitates a 3.0 V output from a 5.0 V ± 10% input, providing a 20% boost to the dynamic range of an ADC,over performance with existing 2.5 V references.

Parametrics

ad780anz absolute maximum ratings: (1)VIN to Ground: 36 V; (2)Trim Pin to Ground: 36 V; (3)Temp Pin to Ground: 36 V; (4)Power Dissipation (25℃): 500 mW; (5)Storage Temperature: –65℃ to +150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃; (7)ESD Classification: Class 1 (1000 V).

Features

ad780anz features: (1)Pin-Programmable 2.5 V or 3.0 V Output; (2)Ultralow Drift: 3 ppm/℃ max; (3)High Accuracy: 2.5 V or 3.0 V ± 1 mV max; (4)Low Noise: 100 nV/Hz; (5)Noise Reduction Capability; (6)Low Quiescent Current: 1 mA max; (7)Output Trim Capability; (8)Plug-In Upgrade for Present References; (9)Temperature Output Pin; (10)Series or Shunt Mode Operation (±2.5 V, ±3.0 V).
