Product Summary

The L7805CT three-terminal positive regulator is available in TO-220, TO-220FP, TO-3, D2PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. The regulator L7805CT can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, the L7805CT can be used with external components to obtain adjustable voltage and currents.

Parametrics

L7805CT absolute maximum ratings: (1)VI DC input voltage for VO= 5 to 18 V: 35V, for VO= 20, 24 V: 40V; (2)IO Output current: Internally limited; (3)PD Power dissipation: Internally limited; (4)TSTG Storage temperature range: -65 to 150 ℃; (5)TOP Operating junction temperature range: -55 to 150℃.

Features

L7805CT features: (1)Output current to 1.5 A; (2)Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V; (3)Thermal overload protection; (4)Short circuit protection; (5)Output transition SOA protection.

Diagrams

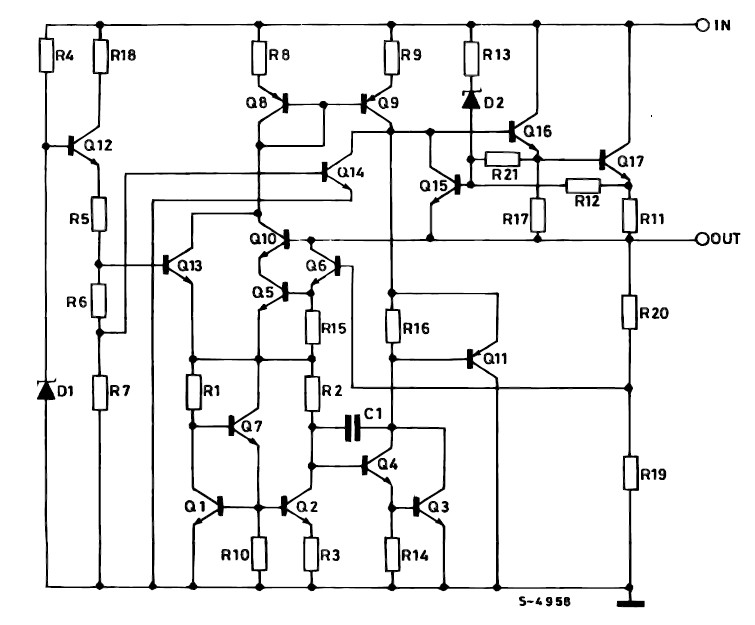

L7805CT Schematic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
L7805CT
L7805CT
STMicroelectronics
Linear Regulators - Standard 5.0V 1.0A Positive
Data Sheet
0-1: $2.01
1-10: $1.63
10-100: $1.47
100-250: $1.33
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
L7800
L7800
Other

Data Sheet
Negotiable
L7800AB
L7800AB
Other

Data Sheet
Negotiable
L7800AC
L7800AC
Other

Data Sheet
Negotiable
L7805
L7805
Other

Data Sheet
Negotiable
L7805ABD2T
L7805ABD2T
STMicroelectronics
Linear Regulators - Standard 5.0V 1.0A Positive
Data Sheet
Negotiable
L7805ABD2T-TR
L7805ABD2T-TR
STMicroelectronics
Linear Regulators - Standard 5.0V 1.0A Positive
Data Sheet
0-1: $0.51
1-10: $0.40
10-100: $0.35
100-250: $0.30
