Product Summary

The PIC18F4320T-I/PT is a 40-Pin High-Performance, Enhanced Flash Microcontroller with 10-Bit A/D and nano Watt Technology. It offers the advantages of all PIC18 microcontrollers– namely, high computational performance at an economical price with the addition of highendurance Enhanced Flash program memory.

Parametrics

PIC18F4320T-I/PT absolute maximum ratings: (1)Ambient temperature under bias: -55 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR and RA4): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3V to +7.5V; (5)Voltage on MCLR with respect to VSS: 0V to +13.25V; (6)Voltage on RA4 with respect to VSS: 0V to +8.5V; (7)Total power dissipation: 1.0W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA; (14)Maximum current sunk by all ports: 200 mA; (15)Maximum current sourced by all ports: 200 mA.

Features

PIC18F4320T-I/PT features: (1)100,000 erase/write cycle Enhanced Flash program memory typical; (2)1,000,000 erase/write cycle Data EEPROM memory typical; (3)Flash/Data EEPROM Retention: > 40 years; (4)Self-programmable under software control; (5)Priority levels for interrupts; (6)8 x 8 Single-Cycle Hardware Multiplier; (7)In-Circuit Debug (ICD) via two pins; (8)Wide operating voltage range: 2.0V to 5.5V.

Diagrams

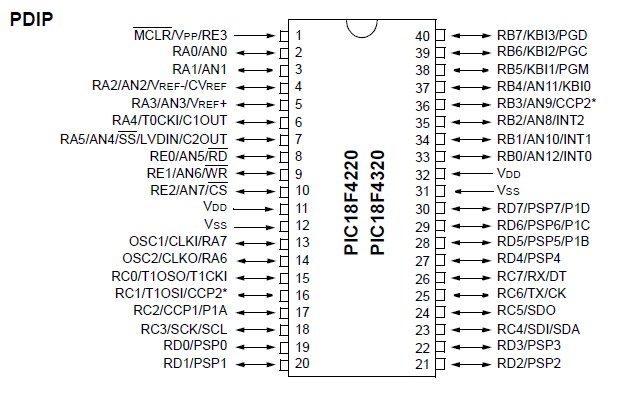

PIC18F4320-I/PT pin dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC18F4320-I/PT
PIC18F4320-I/PT

Microchip Technology

8-bit Microcontrollers (MCU) 8KB 512 RAM 36 I/O

Data Sheet

0-115: $3.62
PIC18F4320-I/PTG
PIC18F4320-I/PTG

Microchip Technology

8-bit Microcontrollers (MCU) 8KB 512 RAM 36 I/O Lead Free Package

Data Sheet

Negotiable
