Product Summary
The MIC4685BR is a high-efficiency 200kHz stepdown (buck) switching regulator. Power conversion efficiency of above 85% is easily obtainable for a wide variety of applications. The MIC4685BR achieves 3A of continuous current in the 7-pin SPAK package. The thermal performance of the SPAK allows it to replace TO-220s and TO-263s (D2PAKs) in many applications. The MIC4685BR allows for a high degree of safety. It has a wide input voltage range of 4V to 30V (34V transient), allowing it to be used in applications where input voltage transients may be present. Built-in safety features include over-current protection, frequency-foldback short-circuit protection, and thermal shutdown.
Parametrics
MIC4685BR absolute maximum ratings: (1)Supply Voltage (VIN): +34V; (2)Enable Voltage (VEN): –0.3V to VIN; (3)Steady-State Output Switch Voltage (VSW): –1V to VIN; (4)Feedback Voltage (VFB): +12V; (5)Storage Temperature (Ts): –65℃ to +150℃; (6)EDS Rating: 2kV.
Features
MIC4685BR features: (1)Low 2mm profile SPAK package; (2)3A continuous output current; (3)Wide 4V to 30V input voltage range (34V transient); (4)Fixed 200kHz PWM operation; (5)Over 85% efficiency; (6)Output voltage adjustable to 1.235V; (7)All surface mount solution; (8)Internally compensated with fast transient response; (9)Over-current protection; (10)Frequency foldback short-circuit protection; (11)Thermal shutdown.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC4685BR |
|
IC REG BUCK ADJ 3A SPAK-7 |
Data Sheet |
Negotiable |
|
||||
|

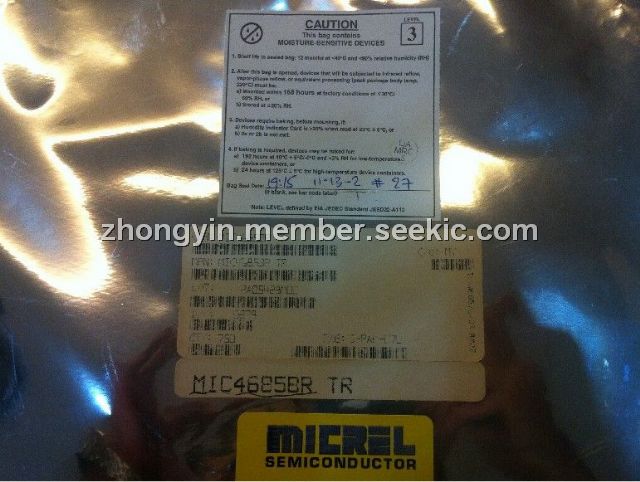

MIC4685BR TR |
|
IC REG BUCK ADJ 3A SPAK-7 |
Data Sheet |
Negotiable |
|
||||
