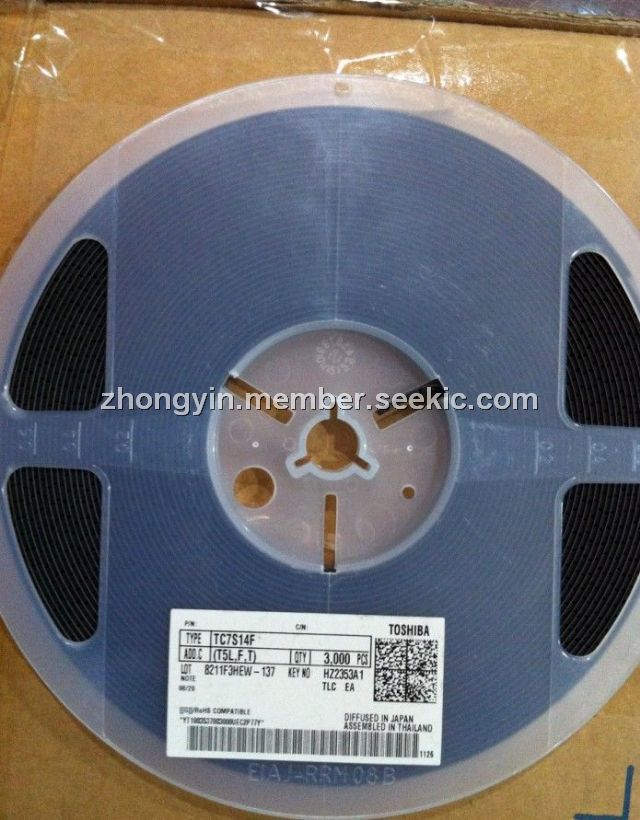

TC7S14F

schmitt inverter, sot-153, 2-input nor gate, toshiba semiconductor, icc 1 μa, iol 2ma, vcc -0.5 to 7.0 v, low power dissipation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.06~0.06 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.06~0.06

PartNumber:: TC7S14F

Brand:: Toshiba Semiconductor - Toshiba | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-24

From Other Seller

Part Number:TC7S14F
US $0.06 - 0.06
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TC7S14F is a high speed CMOS schmitt fabricated with silicon gate CMOS technology. The TC7S14F achieves a high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The input have 25% VCC hysteresis and with its schmitt trigger function, the TC7S14F can be used as line receivers which will receive slow input signal. Input is equipped with protection circuits against static dischange or transinent excess voltage. Output currents are 1/2 compared to TC74HC series models.

Parametrics

TC7S14F absolute maximum ratings: (1)Supply voltage VCC: -0.5 to 7.0 V; (2)DC input voltage VIN: -0.5 to VCC + 0.5 V; (3)DC output voltage VOUT: -0.5 to VCC + 0.5 V; (4)Input diode current IIK: ±20 mA; (5)Output diode current IOK: ±20 mA; (6)DC output current IOUT: ±12.5 mA; (7)DC VCC/ground current ICC: ±50 mA; (8)Power dissipation PD: 200 mW; (9)Storage temperature Tstg: -65 to 150 ℃; (10)Lead temperature (10 s) TL: 260 ℃.

Features

TC7S14F features: (1)High Speed : tpd = 11ns (typ.) at VCC = 5 V; (2)Low power dissipation : ICC = 1 μA (max) at Ta = 25℃; (3)High noise immunity; (4)Output drive capability : 5 LSTTL Loads; (5)Symmetrical Output Impedance : |IOH| = IOL= 2mA (min); (6)Balanced propagation delays : tpLH = tpHL; (7)Wide operating voltage range : VCC = 2 to 6 V.
