Product Summary

The TPS7201QDR low-dropout (LDO) voltage regulator offers the benefits of low-dropout voltage, micropower operation, and miniaturized packaging. The regulator features extremely low dropout voltages and quiescent currents compared to conventional LDO regulators. Offered in small-outline integrated-circuit (SOIC) packages and 8-terminal thin shrink small-outline (TSSOP), the TPS7201QDR is ideal for cost-sensitive designs and for designs where board space is at a premium.

Parametrics

TPS7201QDR absolute maximum ratings(1)Input voltage range, VI, PG, SENSE, EN: –0.3 V to 11 V; (2)Output current, IO: 1.5 A; (3)Operating virtual junction temperature range, TJ: –55℃ to 150℃; (4)Storage temperature range, Tstg: –65℃ to 150℃; (5)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TPS7201QDR features: (1)Available in 5-V, 4.85-V, 3.3-V, 3.0-V, and 2.5-V Fixed-Output and Adjustable Versions; (2)Dropout Voltage <85 mV Max at IO = 100 mA (TPS7250); (3)Low Quiescent Current, Independent of Load, 180 uA Typ; (4)8-Pin SOIC and 8-Pin TSSOP Package; (5)Output Regulated to ±2% Over Full; (6)Operating Range for Fixed-Output Versions; (7)Extremely Low Sleep-State Current, 0.5 uA Max; (8)Power-Good (PG) Status Output.

Diagrams

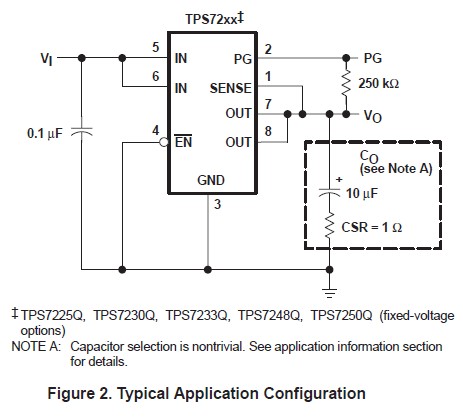

TPS7201QDR Typical Application Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TPS7201QDR
TPS7201QDR

Texas Instruments

Low Dropout (LDO) Regulators Micropower PMOS Adjustable

Data Sheet

0-1: $1.09
1-25: $0.88
25-100: $0.80
100-250: $0.72
TPS7201QDRG4
TPS7201QDRG4

Texas Instruments

Low Dropout (LDO) Regulators Micropower PMOS Adjustable

Data Sheet

0-1610: $0.55
1610-2000: $0.52
2000-2500: $0.52
2500-5000: $0.50
