NCP803SN308T1G

Product Summary

The NCP803SN308T1G is a cost-effective system supervisor circuit designed to monitor VCC in digital systems and provide a reset signal to the host processor when necessary. No external components are required. The reset output of the NCP803SN308T1G is driven active within 10 usec of VCC falling through the reset voltage threshold. Reset is maintained active for a timeout period which is trimmed by the factory after VCC rises above the reset threshold. The NCP803SN308T1G has an open drain active-low RESET output. The device is available in SOT-23 and SC-70packages. The NCP803SN308T1G is optimized to reject fast transient glitches on the VCC line. Low supply current of 0.5 uA (VCC = 3.2 V) make the device suitable for battery powered applications.

Parametrics

NCP803SN308T1G absolute maximum ratings: (1)Power Supply Voltage (VCC to GND), VCC: -0.3 to 6.0 V; (2)RESET Output Voltage (CMOS): -0.3 to (VCC + 0.3) V; (3)Input Current, VCC: 20 mA; (4)Output Current, RESET: 20 mA; (5)dV/dt (VCC): 100 V/usec; (6)Thermal Resistance, Junction-to-Air: RθJA= 301℃/W at SOT-23; RθJA= 314 ℃/W at SC-70; (7)Operating Junction Temperature Range, TJ: -40 to +105 ℃; (8)Storage Temperature Range, Tstg: -65 to +150 ℃; (9)Lead Temperature (Soldering, 10 Seconds), Tsol: +260 ℃; (10)ESD Protection: Human Body Model (HBM): Following Specification JESD22-A114: 2000v; machine Model (MM): Following Specification JESD22-A115: 200V; (11)Latchup Current Maximum Rating: Following Specification JESD78 Class II: ILatchup: 200 mA at Positive; ILatchup: 200 mA at Negative.

Features

NCP803SN308T1G features: (1)Precision VCC Monitor for 1.5 V, 2.5 V, 3.0 V, 3.3 V, and 5.0 V Supplies; (2)Precision Monitoring Voltages from 1.2 V to 4.9 V Available in 100 mV Steps; (3)Four Guaranteed Minimum Power-On Reset Pulse Width Available(1 ms, 20 ms, 100 ms, and 140 ms); (4)RESET Output Guaranteed to VCC = 1.0 V; (5)Low Supply Current; (6)VCC Transient Immunity; (7)No External Components; (8)Wide Operating Temperature: -40℃ to 105℃; (9)Pb-Free Packages are Available.

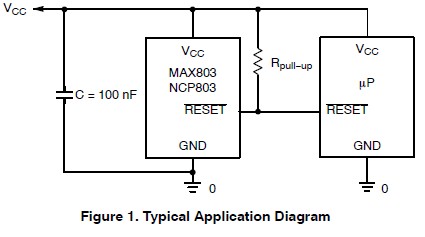

Diagrams
