Product Summary

The TDA7468D13TR is a volume tone (bass and treble) balance (Left/Right) processor for quality audio applications in Hi-Fi systems. Selectable input gain is provided. Control of all the functions is accomplished by serial bus. The AC signal setting of the TDA7468D13TR is obtained by resistor networks and switches combined with operational amplifiers. Thanks to the used BIPOLAR/CMOS Technology, Low Distortion, Low Noise and DC stepping are obtained.

Parametrics

TDA7468D13TR absolute maximum ratings: (1)VS, Operating Supply Voltage: 10.5 V; (2)Tamb, Operating Ambient Temperature: 0 to 70 ℃; (3)Tstg, Storage Temperature Range: -55 to 150 ℃.

Features

TDA7468D13TR features: (1)input multiplexer: 4 stereo inputs; selectable input gain for optimal adaptation to different sources; (2)one stereo output; (3)bass alc; (4)treble and bass control in 2.0db; (5)steps; (6)volume control in 1.0db steps; (7)two speaker attenuators: two independent speaker control in 1.0db steps for balance facility; independent mute function; (8)all function are programmable via; (9)serial bus; (10)externally adjustable surround.

Diagrams

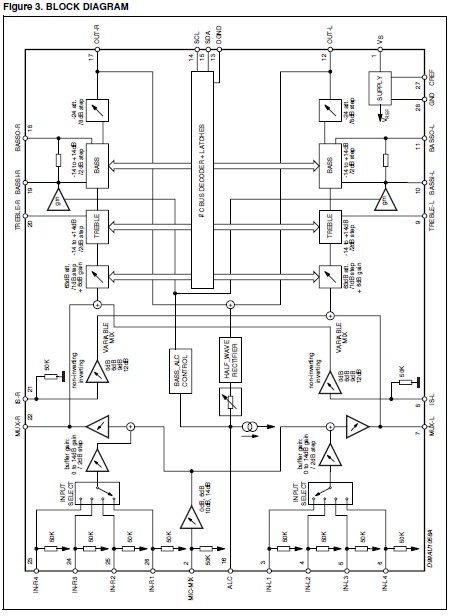

TDA7468D13TR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TDA7468D13TR
TDA7468D13TR

STMicroelectronics

Multimedia Misc 2 Bands Digitally Controled Audio Proc

Data Sheet

0-590: $1.39
590-1000: $1.13
1000-2000: $1.08
2000-5000: $1.03
