Product Summary
The IRF3205PBF is a power MOSFET. Its package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry. It has a wide variety of applications.
Parametrics
IRF3205PBF absolute maximum ratings: (1)ID @ TC = 25℃, Continuous Drain Current, VGS @ 10V: 110A; (2)ID @ TC = 100℃, Continuous Drain Current, VGS @ 10V: 80A; (3)IDM, Pulsed Drain Current: 390A; (4)PD @TC = 25℃, Power Dissipation: 200W; (5)Linear Derating Factor: 1.3W/℃; (6)VGS, Gate-to-Source Voltage: ±20V; (7)IAR, Avalanche Current: 62A; (8)EAR, Repetitive Avalanche Energy: ±20mJ; (9)dv/dt, Peak Diode Recovery dv/dt: 5.0V/ns; (10)TJ, TSTG, Operating Junction and Storage Temperature Range: -55 to + 175℃; (11)Soldering Temperature, for 10 seconds: 300 (1.6mm from case )℃.
Features
IRF3205PBF features: (1)Advanced Process Technology; (2)Ultra Low On-Resistance; (3)Dynamic dv/dt Rating; (4)175℃ Operating Temperature; (5)Fast Switching; (6)Fully Avalanche Rated; (7)Lead-Free.

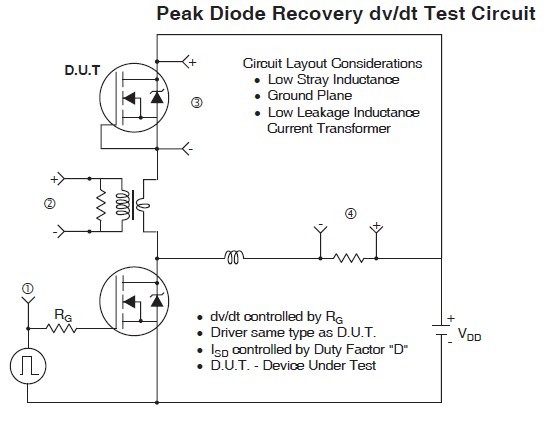

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRF3205PBF |
International Rectifier |
MOSFET MOSFT 55V 98A 8mOhm 97.3nC |
Data Sheet |
|
|
||||||||||||
