Product Summary

The PBRC-4.19HR is a MHz Band ceramic resonator for car accessories, cam-corders, digital cameras, PDAs, PC Peripherals.

Parametrics

PBRC-4.19HR specifications: (1)ceramic resonator, 4.19MHZ, SMD; (2)Frequency:4.19MHz; (3)Frequency Tolerance:± 0.5%; (4)Oscillator Mounting:SMD; (5)No. of Pins:3; (6)Operating Temperature Range:-40℃ to +85℃; (7)External Height:2mm; (8)Operating Temperature Max:85℃; (9)RoHS Compliant: Yes.

Features

PBRC-4.19HR features: (1)Excellent frequency stability; (2)Low profile; (3)Reflow solderable; (4)Excellent solderability (Nickel barrier + Au flash termination).

Diagrams

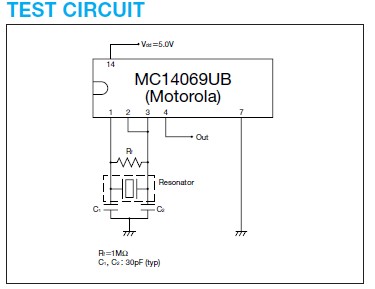

PBRC-4.19HR test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

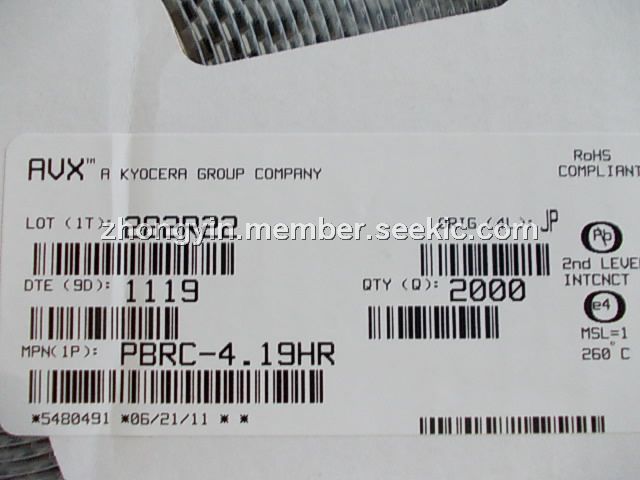

PBRC-4.19HR
PBRC-4.19HR

AVX

Resonators 4.190MHZ .5% CHIP RESNTR

Data Sheet

0-1: $0.56
1-2000: $0.15
2000-4000: $0.14
4000-10000: $0.13
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PBRC-10.00BR07
PBRC-10.00BR07

AVX

Resonators 10.00MHZ .5% W/CAP

Data Sheet

Negotiable
PBRC-10.00HR
PBRC-10.00HR

AVX

Resonators 10.00 MHZ .7% W/CAP

Data Sheet

0-1: $0.34
1-10: $0.29
10-100: $0.27
100-500: $0.20
PBRC10.00HR50X000
PBRC10.00HR50X000

AVX

Resonators 10MHz 5%

Data Sheet

0-1: $1.12
1-10: $1.08
10-100: $0.63
100-500: $0.58
PBRC10.00HR50X0RZ
PBRC10.00HR50X0RZ

AVX

Resonators 10.00MHZ .5% CHIP RESONATOR

Data Sheet

0-1: $0.34
1-10: $0.29
10-100: $0.27
100-200: $0.22
PBRC10.00HR70X000
PBRC10.00HR70X000

AVX

Resonators 10.00MHZ .5% W/CAP

Data Sheet

0-1: $1.73
1-10: $1.66
10-100: $0.97
100-500: $0.90
PBRC10.00MR50X000
PBRC10.00MR50X000

AVX

Resonators 10MHz 5%

Data Sheet

0-1: $0.35
1-10: $0.29
10-100: $0.27
100-500: $0.25
