Product Summary

The mc1413BDR2G is a seven NPN Darlington connected transistor.

Parametrics

mc1413BDR2G absolute maximum ratings: (1)Output Voltage, VO: 50 V; (2)Input Voltage, VI: 30 V; (3)Collector Current — Continuous, IC: 500 mA; (4)Base Current — Continuous, IB: 25 mA; (5)Operating Ambient Temperature Range, TA: -40 to +85℃; (6)Storage Temperature Range, Tstg: -55 to +150℃; (7)Junction Temperature, TJ: 150℃.

Features

mc1413BDR2G features: (1)well suited for driving lamps, relays, or printer hammers in a variety of industrial and consumer applications; (2)high breakdown voltage and internal suppression diodes; (3)freedom from problems associated with inductive loads; (4)Peak inrush currents to 500 mA; (5)can drive incandescent lamps.

Diagrams

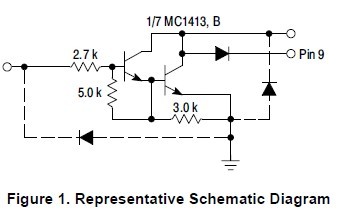

mc1413BDR2G schematic diagram
