Product Summary
The STD90N02L utilizes the latest advanced design rules of ST’s proprietary STripFET technology. This STD90N02L is suitable for the most demanding DC-DC converter application where high efficiency is to be achieved.
Parametrics
STD90N02L absolute maximum ratings: (1)Drain-source voltage rating, Vspike: 30V; (2)Drain-source voltage (VGS = 0), VDS: 24V; (3)Drain-gate voltage (RGS = 20kΩ), VDGR: 24V; (4)Gate-source voltage, VGS: ±20V; (5)Drain current (continuous) at TC=25℃, ID: 60A; (6)Drain current (continuous) at TC=100℃, ID: 42A; (7)Drain current (pulsed), IDM: 240A; (8)Total dissipation at TC = 25℃, Ptot: 70W; (9)Derating factor: 0.47W/℃; (10)Single pulse avalanche energy, EAS: 360mJ; (11)Operating junction temperature, Tj: -55 to 175℃; (12)Storage temperature, Tstg: -55 to 175℃.
Features
STD90N02L features: (1)RDS(ON) Qg industry’s benchmark; (2)Conduction losses reduced; (3)Switching losses reduced; (4)Low threshold device; (5)In compliance with the 2002/95/ec european directive.

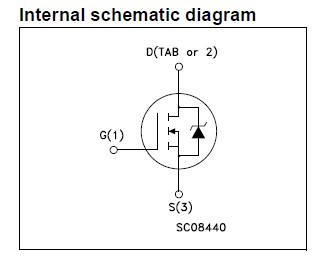

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 STD90N02L |
STMicroelectronics |
MOSFET N Ch 24V 0.0068 Ohm 60A |
Data Sheet |
Negotiable |
|
||||
|
STD90N02L-1 |
STMicroelectronics |
MOSFET N Ch 24V 0.0068 Ohm 60A |
Data Sheet |
Negotiable |
|
||||
