Product Summary
The TLC3702CDR consists of two independent micropower voltage comparators designed to operate from a single supply and be compatible with modern HCMOS logic systems. It is functionally similar to the LM339 but use onetwentieth of the power for similar response times. The push-pull CMOS output stage drives of TLC3702CDR capacitive loads directly without a powerconsuming pullup resistor to achieve the stated response time.
Parametrics
TLC3702CDR absolute maximum ratings: (1)Supply voltage range, VDD: –0.3V to 18V; (2)Differential input voltage, VID: ±18V; (3)Input voltage range, VI: –0.3V to VDD; (4)Output voltage range, VO: –0.3V to VDD; (5)Input current, II: ±5 mA; (6)Output current, IO (each output): ±20 mA; (7)Total supply current into VDD: 40mA; (8)Total current out of GND: 40mA; (9)Storage temperature range: –65℃ to 150℃; (10)Case temperature for 60 seconds: FK package, 260℃; (11)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D or P package, 260℃; (12)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: JG package, 300℃.
Features
TLC3702CDR features: (1)Push-Pull CMOS Output Drives Capacitive Loads Without Pullup Resistor, IO=±8mA; (2)Very Low Power, 100mW Typ at 5V; (3)Fast Response Time, tPLH = 2.7ms Typ With 5mV Overdrive; (4)Single-Supply Operation: 3V to 16V; (5)On-Chip ESD Protection.

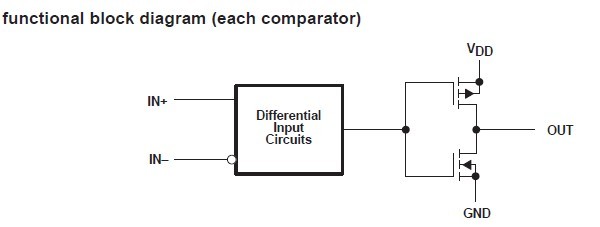

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLC3702CDR |
Texas Instruments |
Comparator ICs Dual Voltage |
Data Sheet |
|
|
||||||||||||
|
TLC3702CDRG4 |
Texas Instruments |
Comparator ICs Dual Micropower Push-Pull Output |
Data Sheet |
|
|
||||||||||||
